Linear Classifications: how to create, draw & edit

To create a new linear classification, open the quantities menu, click the "+" symbol on the right side menu and select "Create Linear Classification" .

To create a new linear classification:

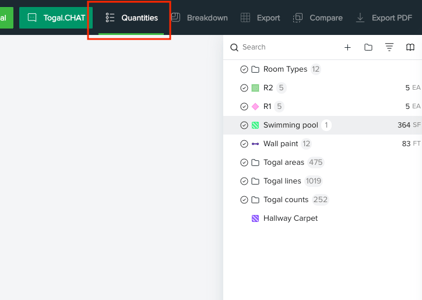

1. Open the Quantities Panel

2. Click the "+" symbol right beside the search bar on the right menu

3. Select "Create Linear Classification".
4. The editor will pop open and allow you to
   1. Create a name for your classification.
   2. Select from a wide array of colors for each classification.
   3. Create multiple output data quantities for each linear condition such as
      1. Vertical Area 1 Side (1 side of the vertical area of a wall)
      2. Vertical Area 2 Sides (Vertical area of both sides of the line)
      3. Vertical Area All Sides (Vertical area of both sides of the line and top & bottom)
      4. Horizontal Area
      5. Volume
      6. Perimeter
5. Click "Save" to create a linear classification that you can now use across the drawing.

To edit an existing linear classification:

1. Right click on any existing linear classification to open a menu.
2. Select "Edit" to the menu to reopen the editor.
3. Make changes to the linear classification and click "Save".

Classification properties for linear classifications:

Slope

You can specify height, width and slope. Slope impacts the length calculation only.
